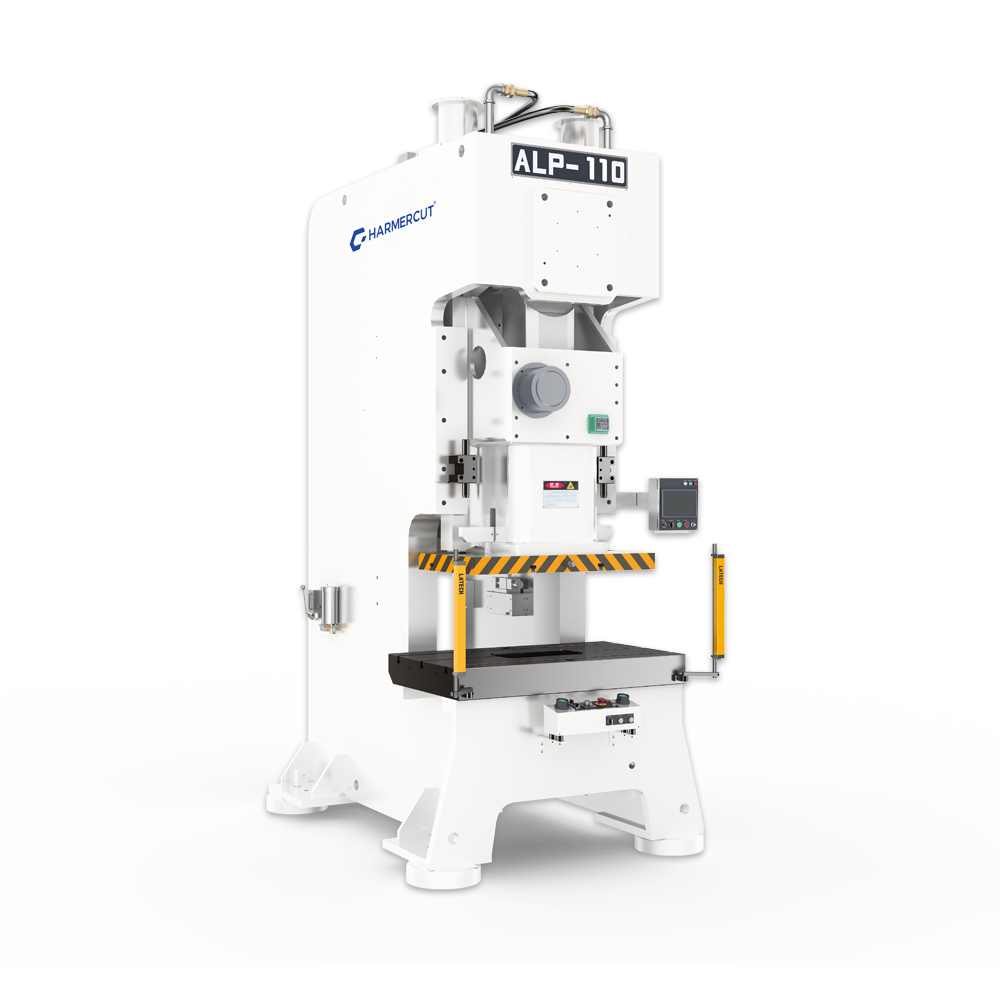

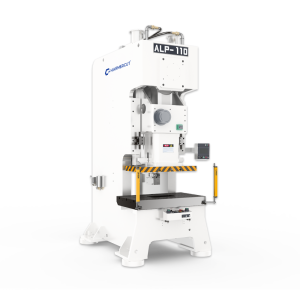

Hochpräzisions-Stanzpresse mit Einzelkurbel und C-Rahmen
$21,428.00
Pneumatische Stanzmaschine: Geringe Abweichungen in der Werkzeughöhe, geringe dynamische Zentrumsabweichung; Deutlich erhöhte Werkzeugstandzeit, geringe Verformung beim Stanzen; Geringeres Schneidgeräusch beim Stanzen.
Hohe Arbeitspräzision, geringe Geräuschentwicklung und komfortable Bedienung
Sechskant-Führungsschiene mit fester Verriegelung; Gehäuse mit hoher Steifigkeit; geringes Gesamtspiel.
C Frame Punch Press Structural Characteristics
- One-piece body, the body is welded with high-quality steel plate, tempered to eliminate internal stress.
- The body guide rail adopts six-sided guidance and has high guiding precision.
- Manual lubrication for 60 tons and below, automatic lubrication for 80 tons and above.
- Dry clutch and wet clutch for option, integrated with brake system with anomaly detection.
- Manual adjustment of slider height for 60 tons and below, electric adjustment for 80 tons and above, adjustment speed about 40mm/min, interlocking control of slider adjustment and balancer pressure, hydraulic protection and slider stroke.
- Machine is equipped with two-hand operation buttons and emergency stop button.
- Digital die height indicator, in-time to display die height.
- Electronic crank angle display for the slider position at any time.
- Air ejector device keeps your workpiece/scrap away from mold, protects the mold and improves production efficiency.
Details Configurations
Control system
- Advanced control system enables precise operation, improving efficiency and reducing operator intervention.
Lubrication System
- Automated lubrication system ensures continuous operation, reducing wear and extending machine life.
Overload Protector
- Built-in overload protector safeguards components, minimizing the risk of damage from excess force.
Servo Drive
- Improve product quality (through motion curve optimization)
- Enhance production efficiency (through intelligent speed control)
- Achieve significant energy savings
Clutch
- Pneumatic transmission offers rapid response and enables high-frequency continuous stamping.
- Safety is ensured by guaranteeing that the slide block stops at the top dead center after each stroke, preventing dangerous situations such as continuous stamping.
Configuration List
Technische Spezifikation
