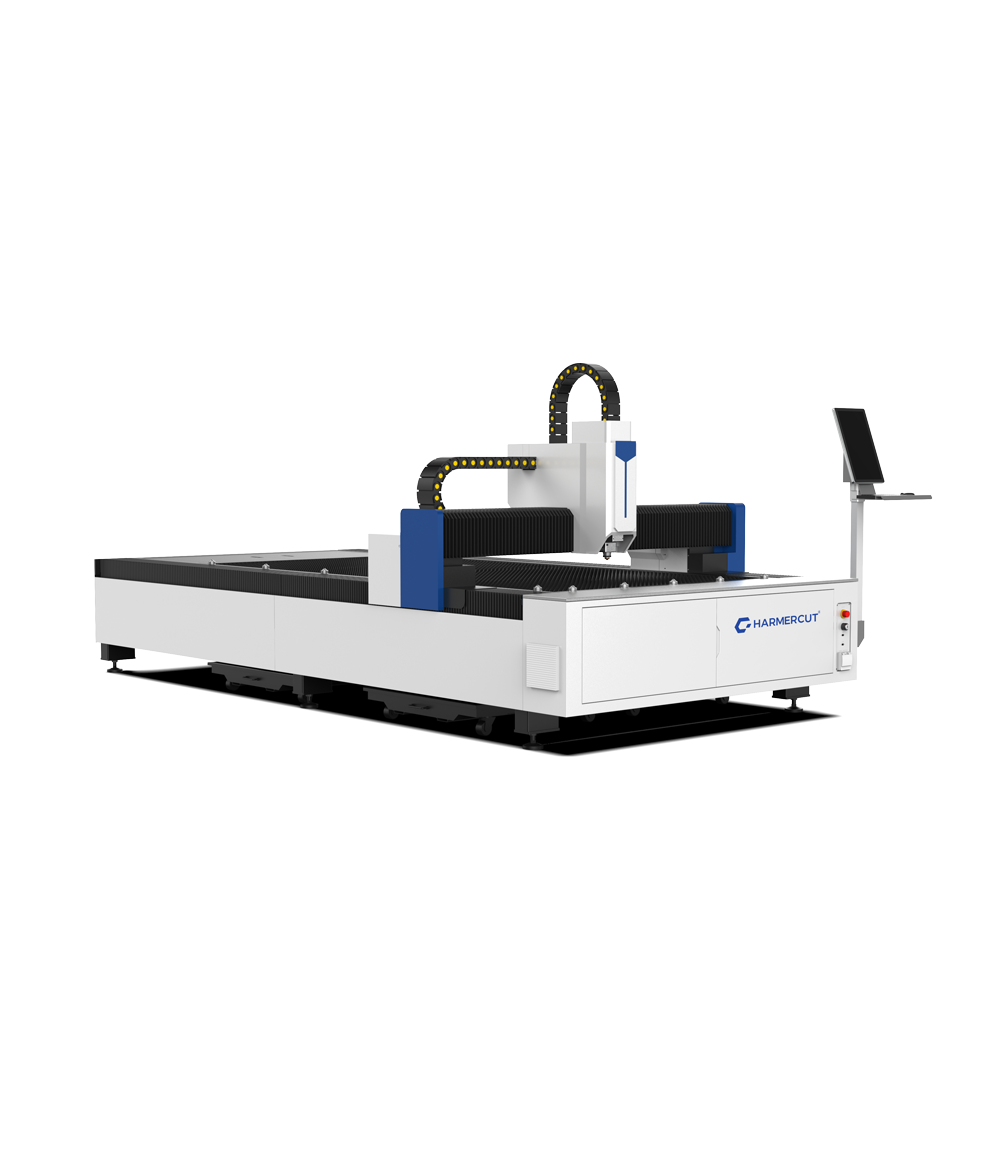

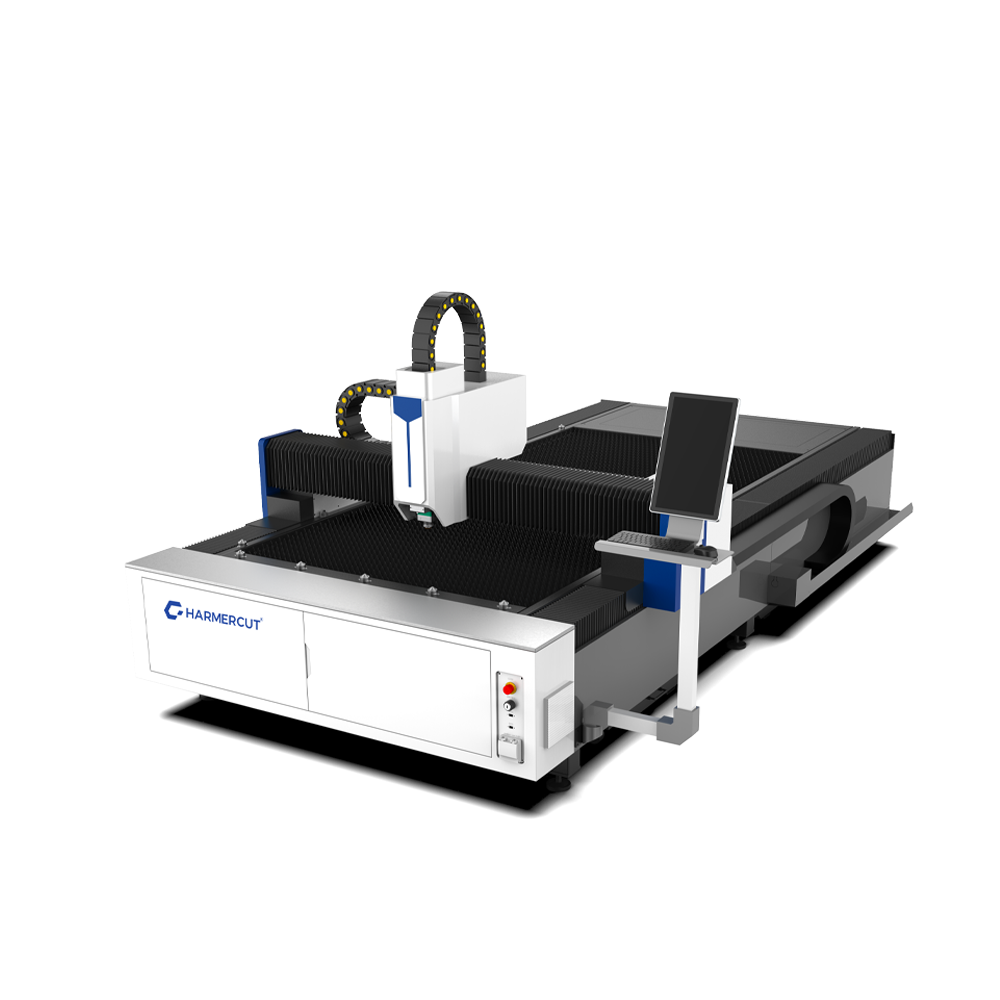

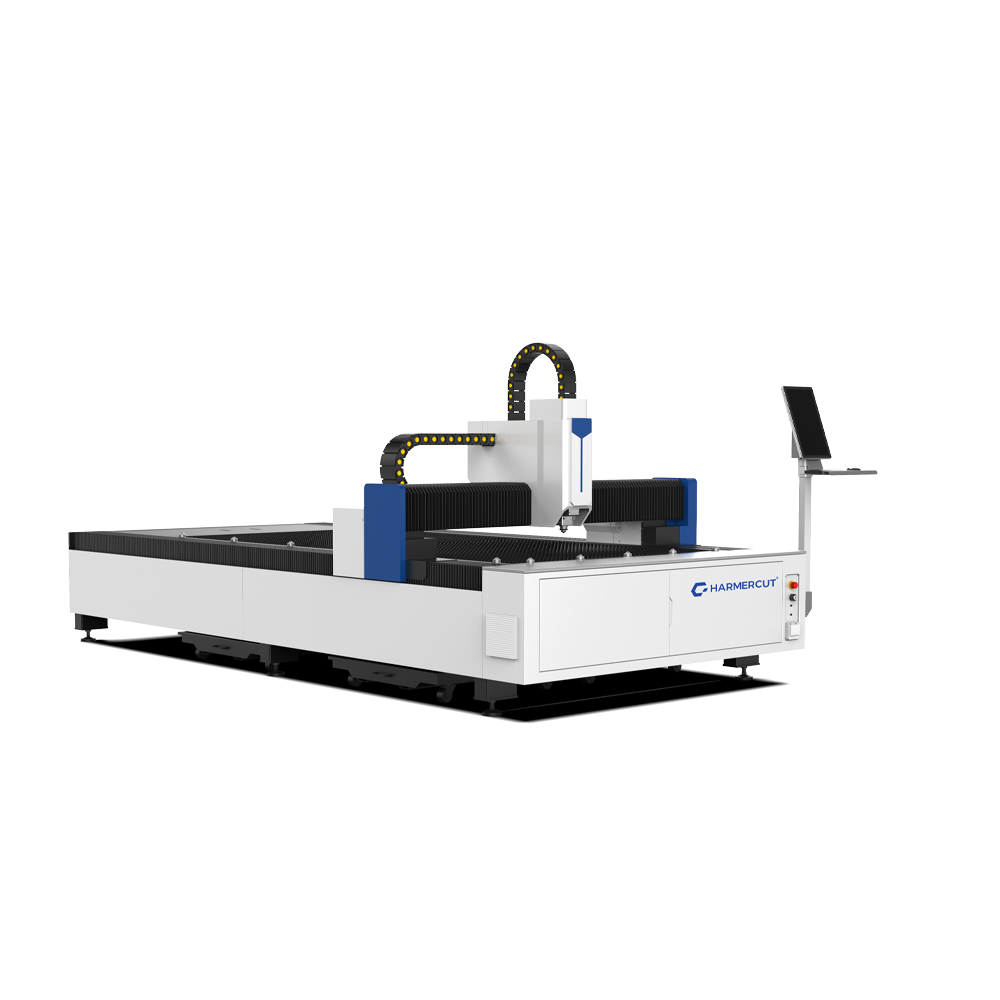

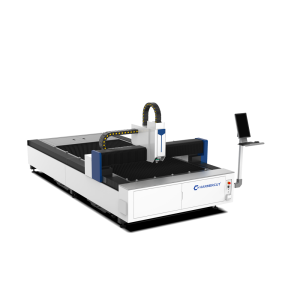

Sheet Metal Laser Cutting Machine
$12,142.00
Type: Fiber Laser Cutting Machine
Model: A3015
Fiber laser power:3000W
Control system: CYPCUT
Dimension:4600*2800*2100mm
standard Configurations
Autofocus Laser Cutting Head
- Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. - Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. - Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

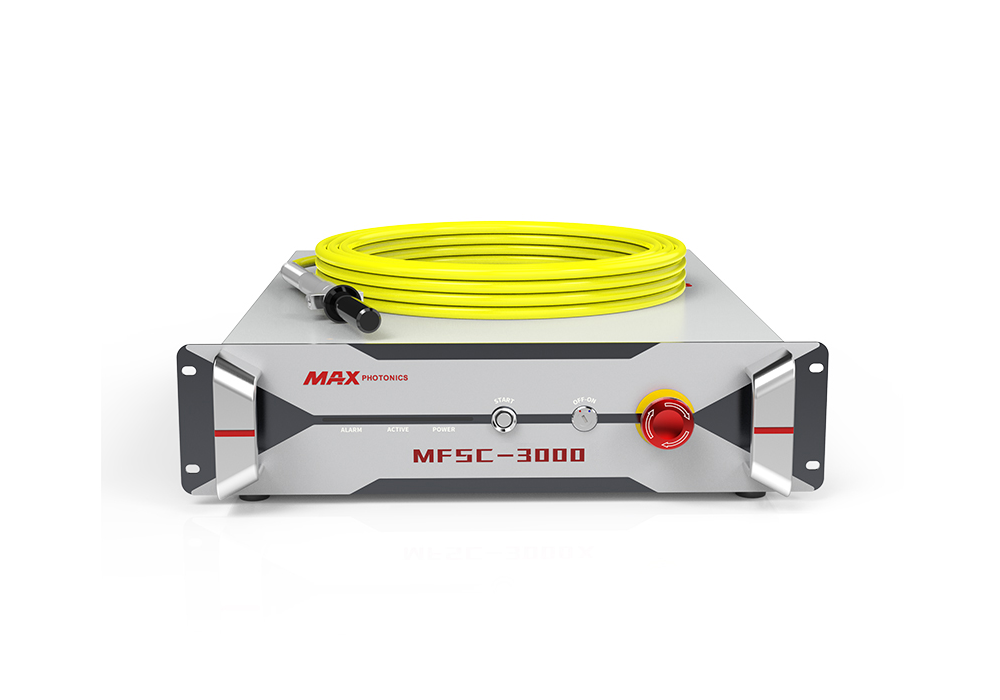

Max Fiber Laser
- Single-mode continuous fiber lasers feature a modular design, highly integrated systems, maintenance-free operation, and high reliability.
- They offer continuously adjustable laser power, high beam quality, and excellent laser stability, making them ideal laser sources for applications such as fine laser cutting and precision welding.
Cutting System
- CypCutE system is easy to use, rich in functions, stable and reliable. The software comes with layout function, and has advanced functions such as “non-trace micro-connection”, “non-sensory perforation”, “disc finding”
New double-keel bed structure
- For efficient processing requirements, self-researched plug type double keel design, long-term cutting without deformation, to ensure stable operation of equipment.
Aviation aluminum alloy beam
- The equipment beam adopts 6-series fourth-generation aviation aluminum profiles. and uses finite element analvsis software for strenath check.
- The whole is processed by T6 heat treatment process. so that the beam can obtain the highest strenath.
- The beam is speciallv equipped with a “stop structure’. and the strong stop of the side wall is on the inner side to resist external forces.
- The overall structure can
ensure that the beam does not move. and its structure is stronger
Cutting sample
Packing and Loading
