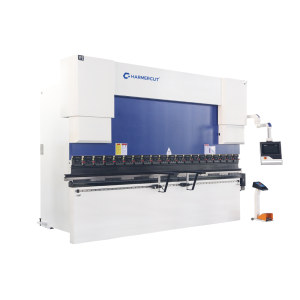

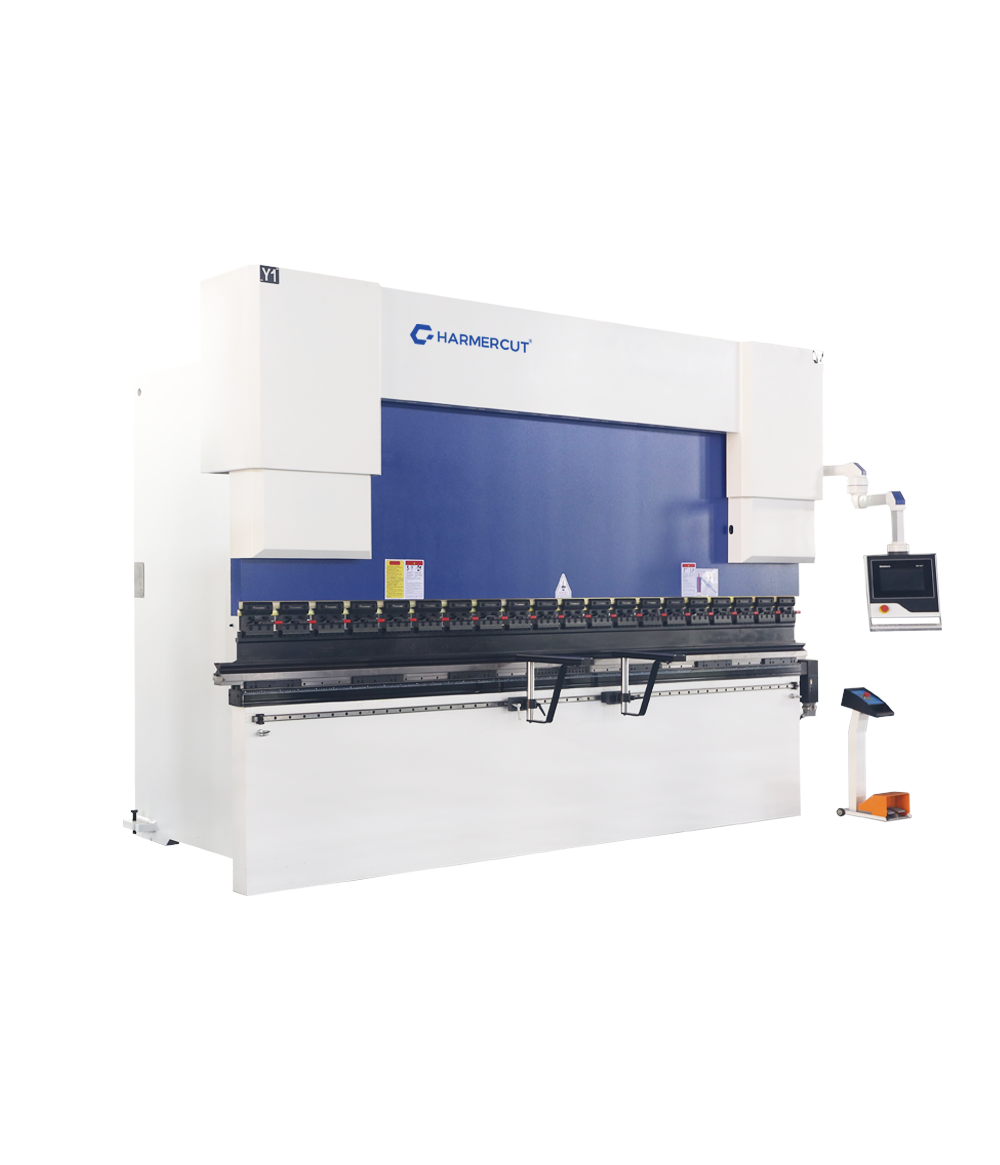

High-Precision CNC Press Brake with 4 Axis for Metal Bending
$26,500.00
Type:Electro-hydraulic CNC Press Brake
Model: WE67k-160T/4000
Control system: Delem DA53T (Smart)
Control axis: 4 axis (Y1,Y2,X,R+CROWNING)
Dimension:4500*1850*2750mm
Weight: 10500KG
CNC Press Brake Machine For The More Demanding Taste Superior Quality. reliability in an economical machine
WE67K Series CNC press brake with a high-quality build with 2.5-6 meters bending length and 50-400 tons bending force has floor bending solution, an impressive number of features and options, competitive pricing and advanced DELEM DA58TX, DA66T or ESA Series 2D capable graphical controls.
Standard specification
DA53T control system
- Hot-keytouch navigation
- 10.1″ high resolution colour TFT
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Crowning control- Tool / material / product library
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- TandemLink (option)
- USB memory stick interfacing
- Profile-53TL offline software
INOVANCE main servo motor
- Advanced control algorithm: INOVANCE main servo motor adopts advanced control algorithm, which can realize precise control of the position, speed and acceleration of the motor.
- High-precision encoder feedback: Equipped with a high-precision encoder feedback system, which further improves the control accuracy and response speed of the motor, ensuring the accuracy and stability of the bending process.
Mechanical Crowning
- The motorized crowning system will adjust the parallelism and straightness automatically
Can be controlled by CNC controller
Fast clamp
- Fast clamp will help you replace the top punch in very shortly time, Fast intermediate loading and up loading function to improve work efficiency
CNC Press Brake 2-Axis CNC BackGauge with X, R-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Manual Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment
Press Brake Tools
- The upper and lower Tools are made of high-quality tools steel (such as Cr12MoV) and undergo forging, turning, and milling processes.
- The Tools are subjected to quenching, tempering, and other heat treatment processes to enhance hardness and wear resistance.
Technical Specification
Optional Configuration
DA66T CNC Controller
- 2D graphical touch screen programming mode
- 17″ high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control’s multitasking environment
- Sensor bending & correction interface
- Profile-TL offline software
Laser Protector
- DSP laser safety protection device fully protects the personal safety of the bending machine operator and avoids the danger caused by the fast movement of the slide block on the machine tool.
Packing and delivery
