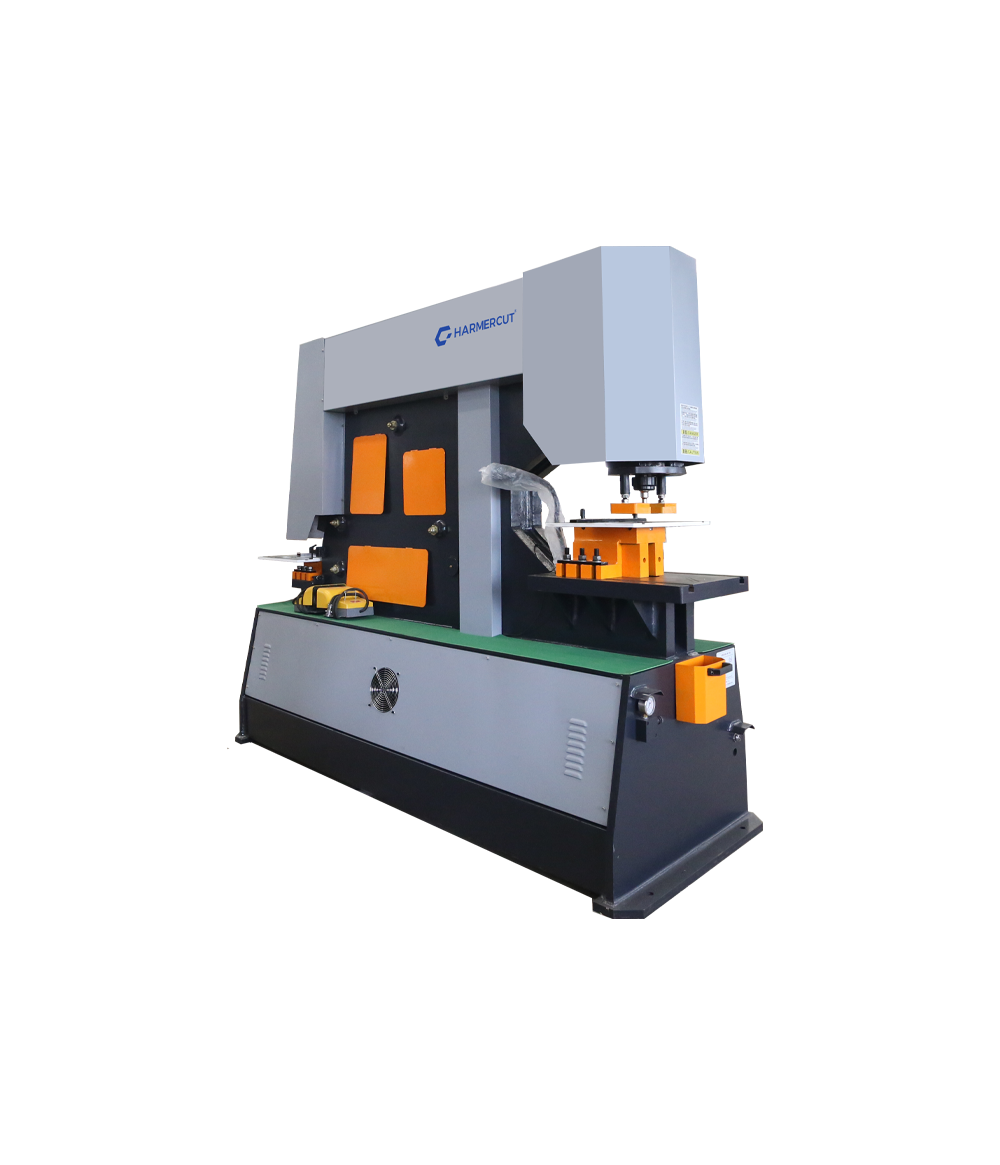

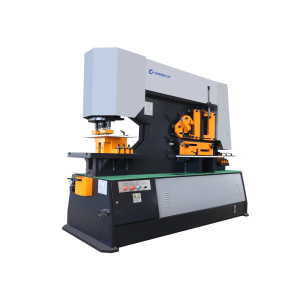

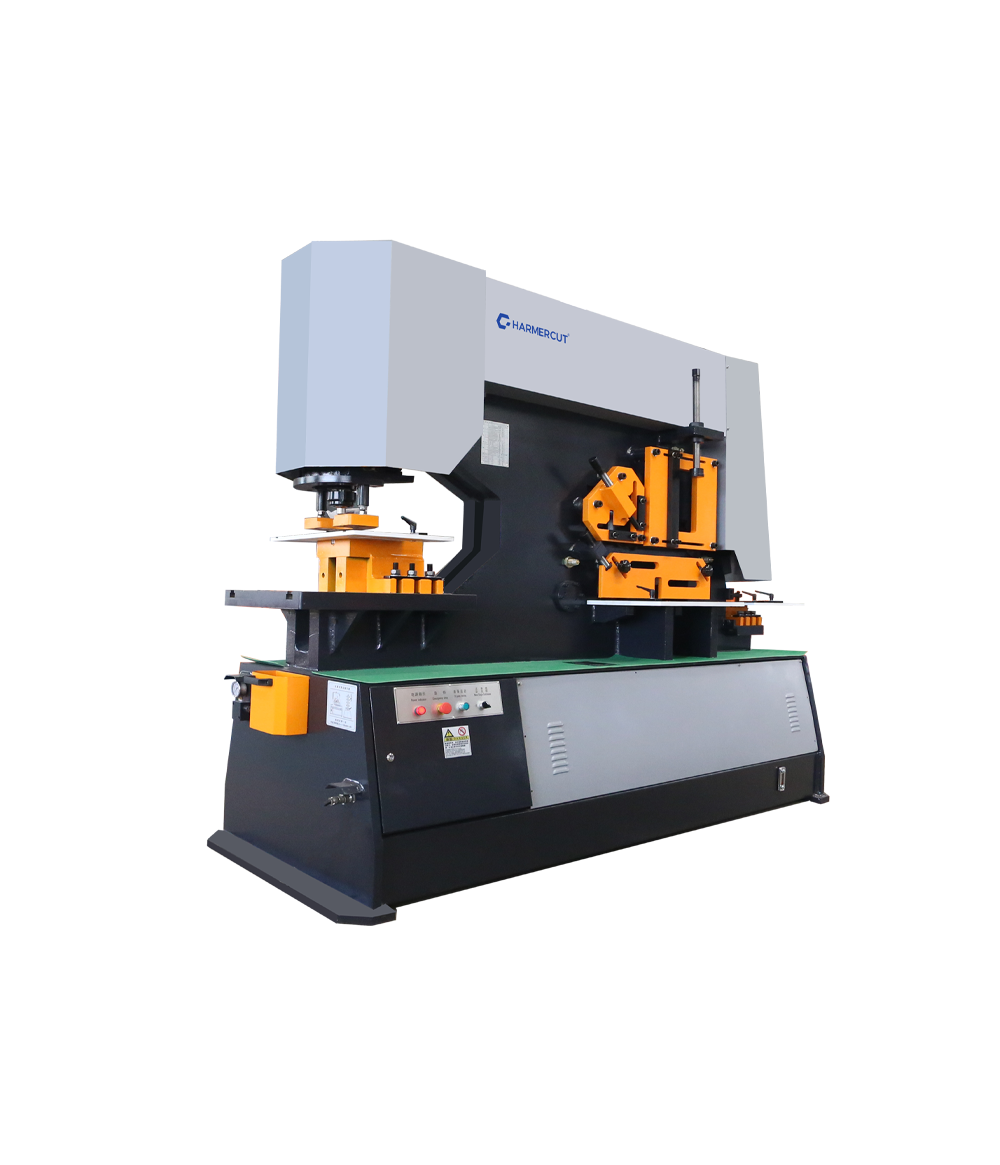

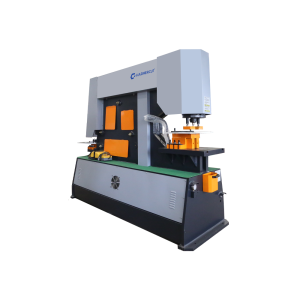

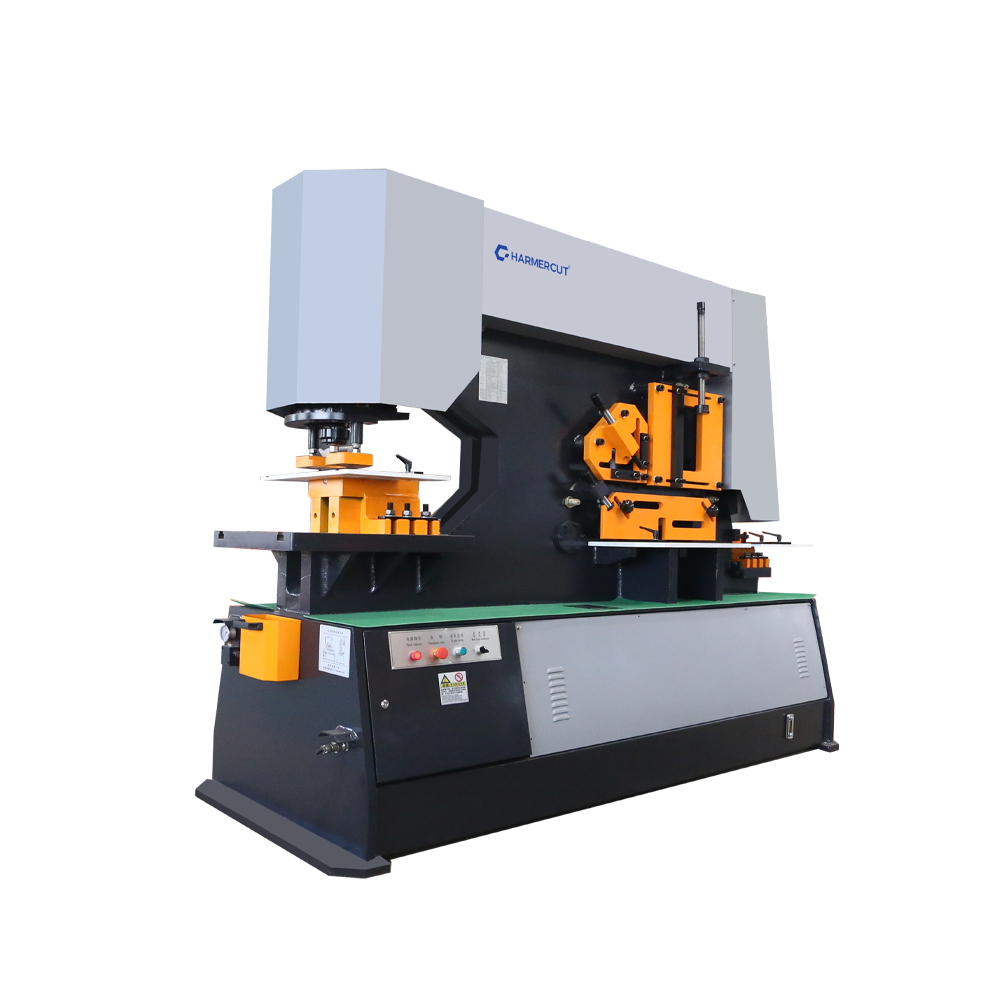

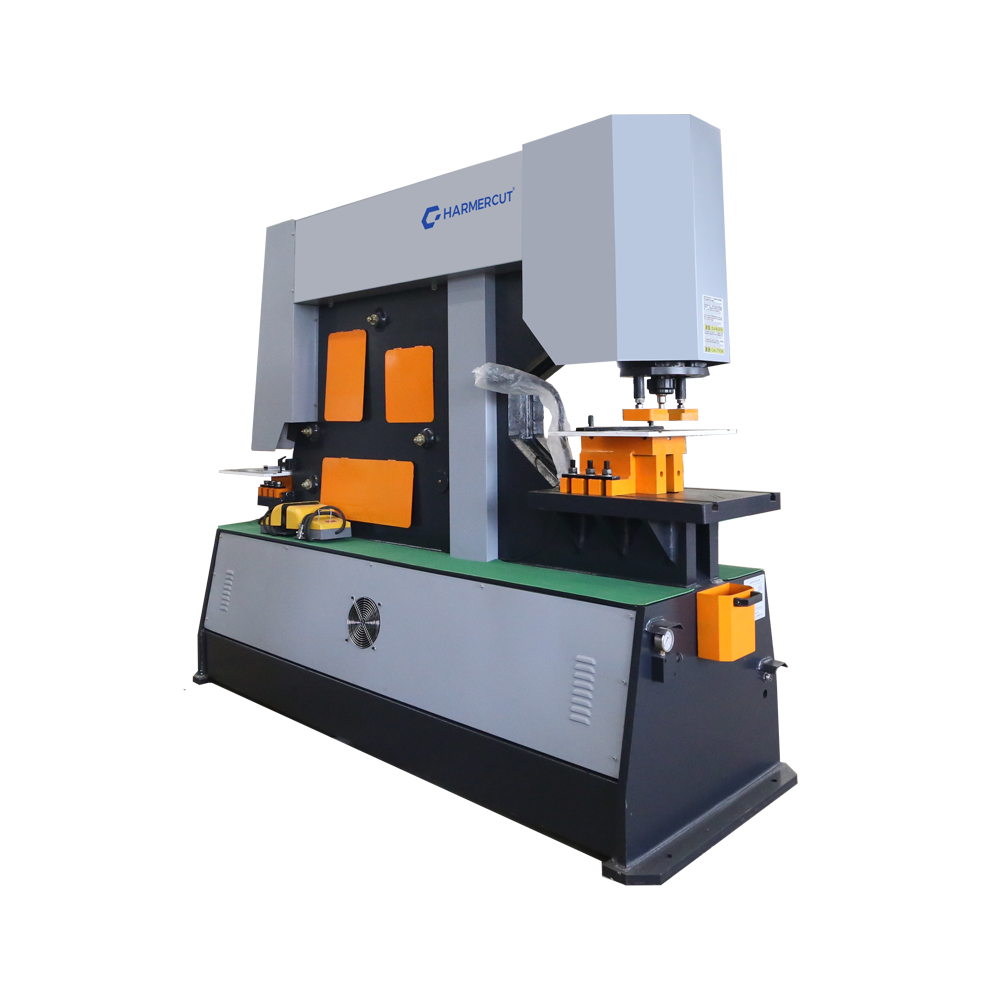

Hydraulic Ironworker Machine
$6,428.00
Model: Q35Y-25
Harmercut Ironworker Machine provides advanced metalworking solutions for punching, notching, shearing, and bending. Our machines are engineered with high-strength frames and reliable hydraulic systems to deliver long-lasting performance. Ideal for fabrication shops, workshops, and industrial use.
Features of Hydraulic ironworker Machine
Robust Hydraulic System: Delivers powerful performance with low maintenance requirements, ensuring consistent operation over long periods.
Multi-Station Design: Integrates multiple workstations into one machine for punching, angle shearing, bar cutting, and notching, maximizing versatility.Heavy-
Duty Frame: Built with high-grade steel for enhanced durability and stability during heavy workloads.
User-Friendly Operation: Equipped with easy-to-use controls and safety systems, including emergency stops and protective covers.
Customization Options: Configurable sizes and functions to match your specific production requirements.
Harmercut hydraulic ironworker machines are ideal for processing flat bars, angles, round bars, I-beams, and more. Their compact footprint and high performance make them suitable for both small workshops and large-scale production facilities. As an experienced hydraulic ironworker machine manufacturer, we offer complete after-sales service, fast delivery, and professional technical support to ensure your operations run smoothly. Whether you are expanding your workshop or upgrading your current equipment, We provides reliable, cost-effective solutions tailored to your needs.
Detail configurations
Punching
- Reliable punching with customizable hole sizes, ideal for diverse sheet metal applications.
Angle Cutting
- Precision angle cutting ensures clean cuts on various angle sizes and thicknesses.
Channel Cutting
- Designed for efficient channel cutting, providing accurate and smooth finishes on channels.
Flat Cutting
- High-capacity flat cutting capability delivers crisp, straight cuts on flat metal sheets.
Notching
- Robust notching function for easy, precise cuts in corners and intricate shapes.
Technical Data of
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | |
| Pressure | Ton | 60 | 90 | 120 | 160 | 200 | 250 |
| Max cut thickness of steel | MM | 16 | 20 | 25 | 30 | 40 | 50 |
| Plate strength | N/MM² | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle | ° | 7° | 8° | 8° | 8° | 8° | 8° |
| One travel cutting size | T*W(MM) | 16*250 8*400 | 20*330 10*480 | 25*330 16*600 | 30*335 20*600 | 40*335 30*600 | 50*300 30*750 |
| Slider stroke | MM | 80 | 80 | 80 | 80 | 100 | 100 |
| Stroke times | T/MIN | 12-28 | 12-28 | 8-18 | 6-16 | 6-16 | 6-12 |
| Throat depth | MM | 300 | 335 | 400 | 600 | 530 | 600 |
| Punch thickness | MM | 16 | 20 | 25 | 28 | 35 | 40 |
| Max punch diameter | MM | 25 | 30 | 35 | 38 | 40 | 45 |
| Main power | KW | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
| Dimension | MM | 1740*810*1830 | 1950*900*1950 | 2355*960*2090 | 2800*1050*2450 | 2900*1100*2500 | 3200*1440*2500 |
Packing and loading
